Schoeps V4 U Studio Vocal Microphone

Opis

• Studio Vocal Microphone
• New small-diaphragm capsule architecture, with bevelled collar for controlling the polar response.
• Warm, clear sonic character with smoothly rolled-off diffuse-field response.
• Capsule head with adjustable tilt angle.
• Optimal on-axis frequency response featuring a mild high-frequency lift.
• Very smooth polar response; carefully-controlled narrowing of the pattern at high frequencies.

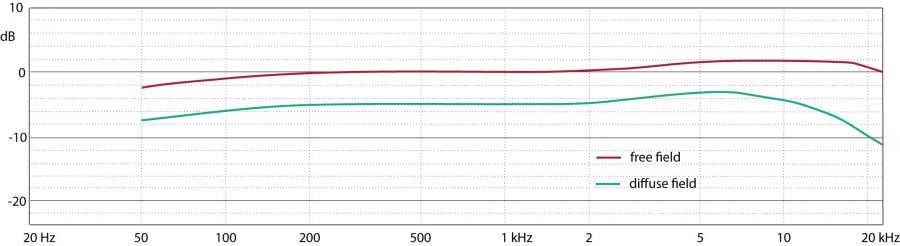

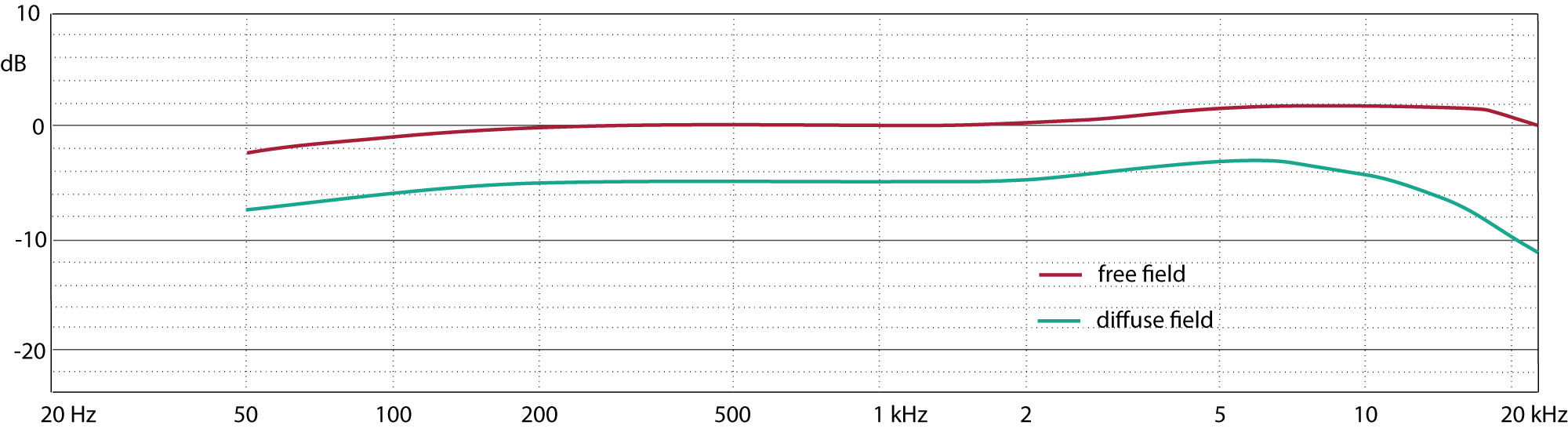

• Diffuse-field response parallel to the 0 ° response, with a gentle roll-off at high frequencies.
• Newly designed electronics offer a very high maximum sound pressure level.

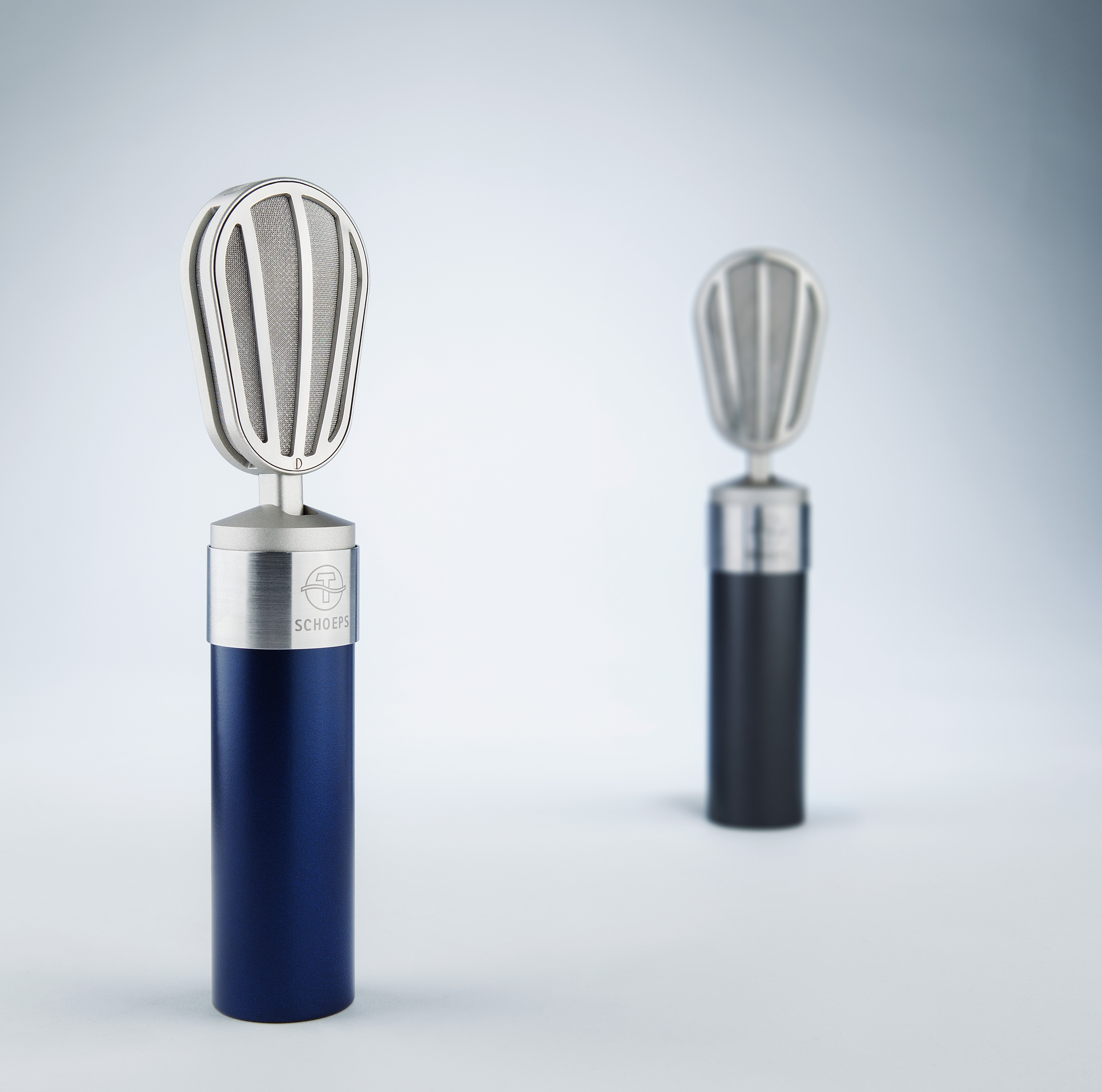

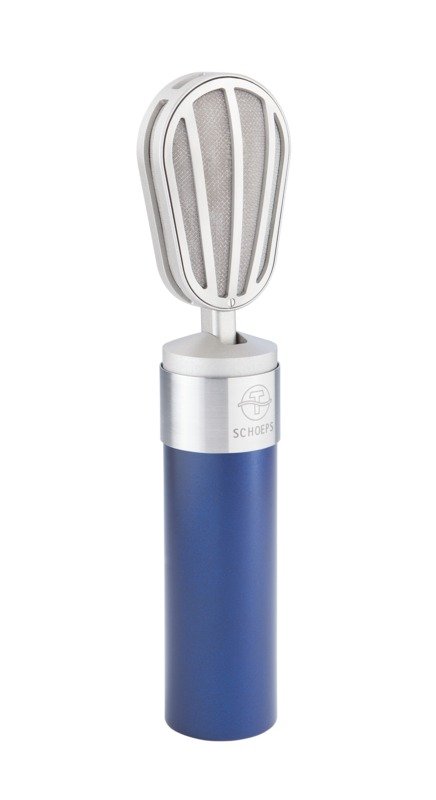

The “look” of the V4 U is based on the SCHOEPS CM 51/3 from 1951. But the V4 U is a thoroughly modern studio microphone. Its capsule, circuitry and mechanical construction are the result of extensive new development.

The Capsule

• A 33-mm beveled collar causes the capsule’s directivity to increase steadily and smoothly at high frequencies, as in a largediaphragm microphone.
• Meanwhile, the superior acoustic qualities of a small-diaphragm capsule like the extraordinarily smooth frequency and polar response are maintained.
• The capsule is elastically suspended internally to reduce solid-borne sound such as handling noise.

The Electronics

• Newly-developed bridge-type balanced output circuit.
• Maximum sound pressure level of 144 dB SPL, corresponding to an output level of 4.8 V.
• Output stage transformerless and free of coupling capacitors.
• The resulting output impedance is low and constant with frequency, while the symmetry is very high.
• Symmetrical, balanced output, the entire audio circuit is symmetrical from the output of the FET onward.
• High immunity to interference, with gapless shielding and a modern RFI filter at the output; very good electromagnetic compatibility.
